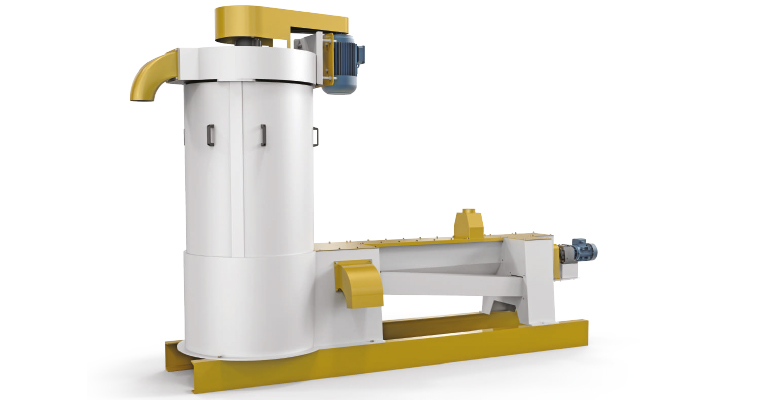

Wheat Washer

It is designed to wash wheat with water and to clean stones, soil, dust, chemical substances, and bacteria inside it. The product inlet valve located in the washing basin is adjusted forward or backward to determine the time in which the product will remain in water. While the wheat is cleaned with the lifting force of the water, foreign articles like stones settle down in water. Stone conveyors located in the bottom and working in opposite direction throw the stones into the stone pan where stones are thrown to the bucket with pressurized water

TYPE CAPACITY (t/h) MOTOR VOLUME (m³) DIMENSIONS WEIGHT (kg)
DRYING (kw) RPM WASHING (kw) RPM A B C ØD E F
ASK-DKY-6 3-4 7.5 900 1.1 160 4.2 2860 3840 550 930 2240 530  1500
ASK-DKY-8 6-8 11 900 1.5 160 5.3 3675 4280 625 1100 2222 650 2200
ASK-DKY-12 12-18 15 900 1.5 160 6.3 3690 4400 650 1250 2300 650 3700
